4G mobile monitoring box GSH-Q100-4G series

Product Introduction:

4G HD PTZ is a comprehensive, portable wireless video emergency command integrated product, is a set of high-definition image acquisition, 4G wireless transmission, video storage, cloud mirror control, voice intercom HD car PTZ network camera. With waterproof and shock-proof features, it can meet the special requirements of temporary layout control and quick installation. When performing tasks, the equipment can be quickly temporarily placed in the position that needs to be monitored, or on the telescopic tripod, or directly adsorbed on the vehicle, and the equipment can be easily removed at the end of the task.

Product features:

1080P HD video, H.265 video encoding, backward compatible with H.264, dual stream

Support full Netcom 4G single card, support customized private network mode

Dual stream, flexible choice of main stream/sub-stream rate, intelligent rate regulation

Stream encrypted storage

Built-in WIFI, support AP and STA working mode

Built-in storage, standard 128GB

Support two-way voice intercom (optional)

Support GPS module, accurate positioning (optional)

Built-in battery, can work continuously for no less than 10 hours at room temperature (optional)

Supports playback of the current video in the specified channel under the preview screen of the mobile phone

Supports remote video export and backup on site, effectively improving video retrieval and playback efficiency

Metal body, 360 degree omnidirectional head

Focus fast and accurate, digital wide dynamic

Integrated design, high suction magnet at the bottom, quick installation. The installation mode of seismic device and strong suction cup is optional

Product Application:

It is suitable for field law enforcement, investigation and control, security and security, emergency command, emergency repair, patrol management and other industry applications, such as public security, traffic police, fire, road administration, urban management, traffic, courts, prisons, forestry, electricity, water conservancy, environmental protection and other units.

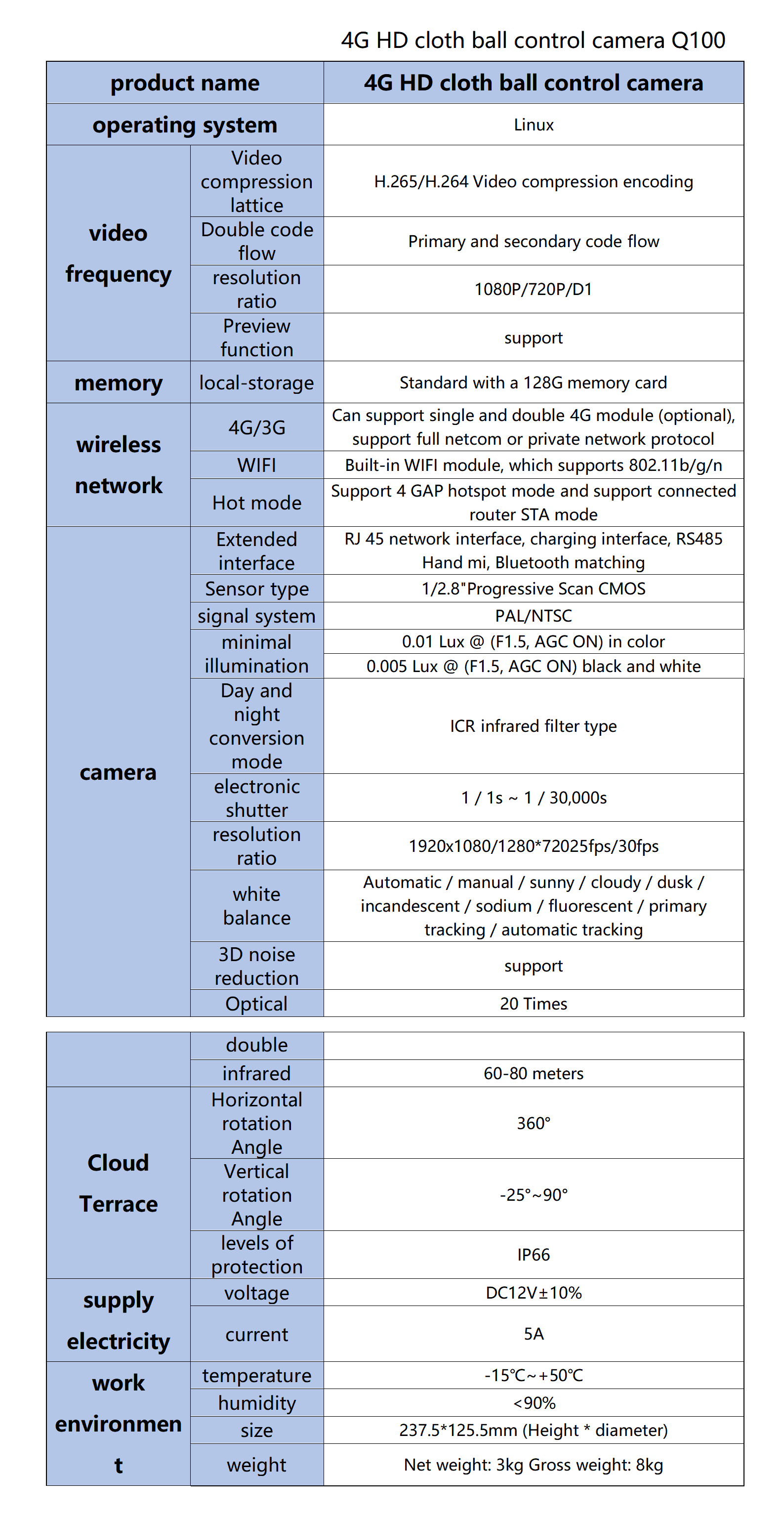

Product technical parameters:

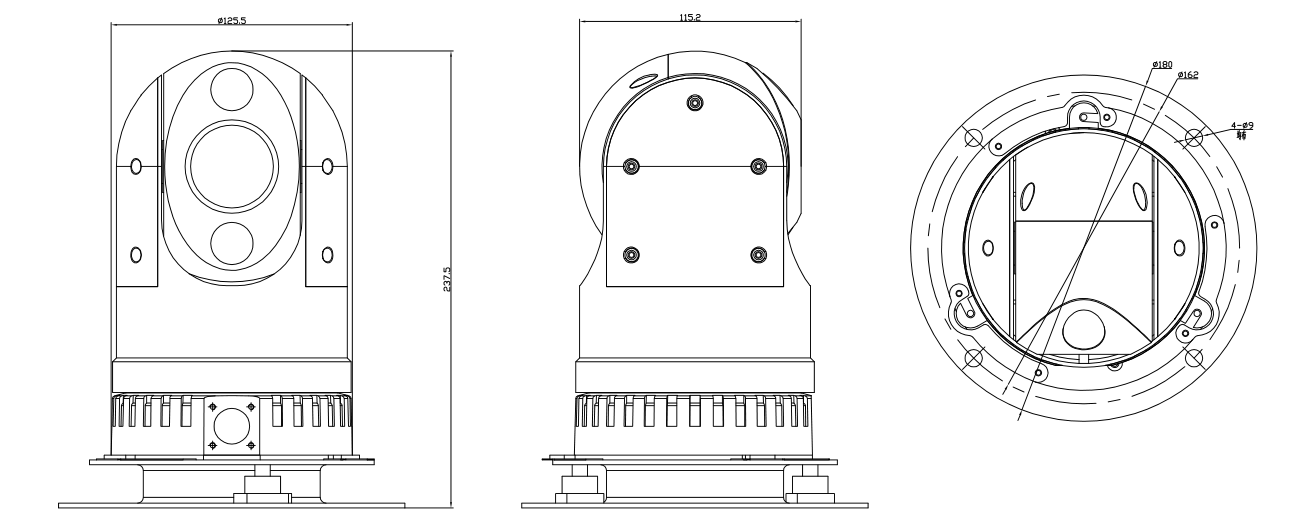

Product size drawing (unit MM) :

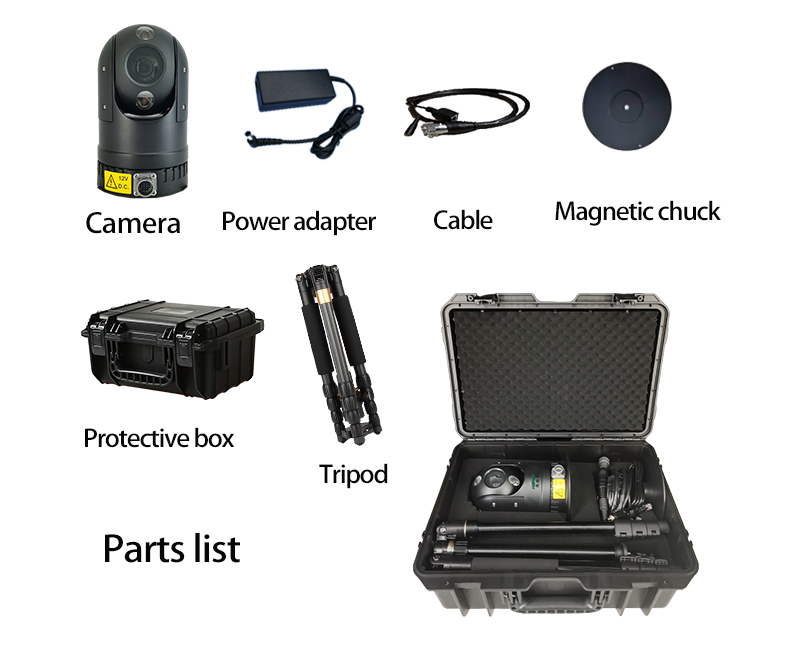

Parts list：
