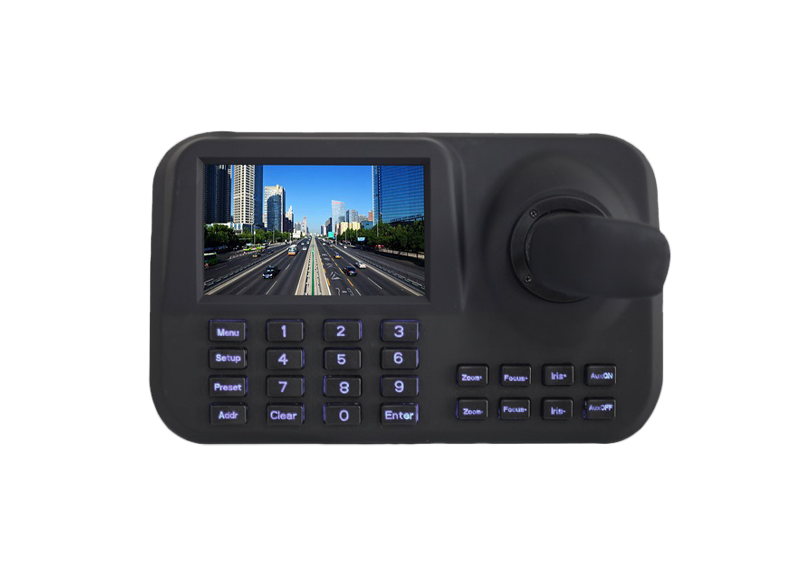

3D display network control keyboard GSH-JP09

GSH-JP09 control keyboard is a powerful multi-function network 3D operation keyboard, simple operation, plug and play, without any setting; Powerful hard decoding function, the industry is the first to achieve IP ball access without ceiling, suitable for large safe city projects, support 5.0"LED LCD HD real-time display; Support HDMI output function, to achieve synchronous switching between the main screen of the console and the control device screen (with matrix switching function), reduce engineering installation costs!

Product features:

Support ONVIF2.4, back-end PTZ is not limited by manufacturers, easy to achieve PTZ cruise, A-B, pattern scanning and other functions;

Plug and play, without any Settings, the keyboard automatically adds and assigns IP addresses;

Standard three-dimensional control, support 1-64 speed limit function, accurate positioning, sensitive control;

Support English and Chinese language switching;

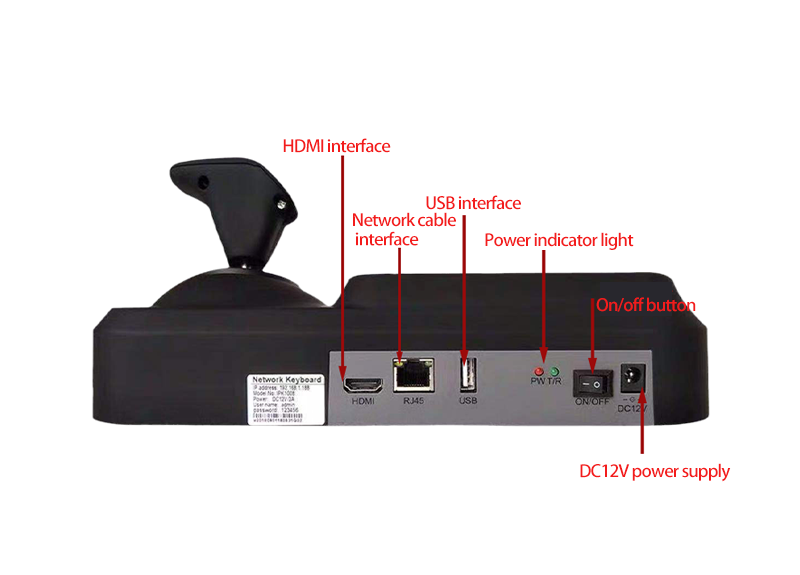

Support USB, HDMI interface output, can realize the operation console main screen arbitrary switch; (Built-in matrix switching function)

Support 5.0"LED HD LCD display, control device image real-time display;

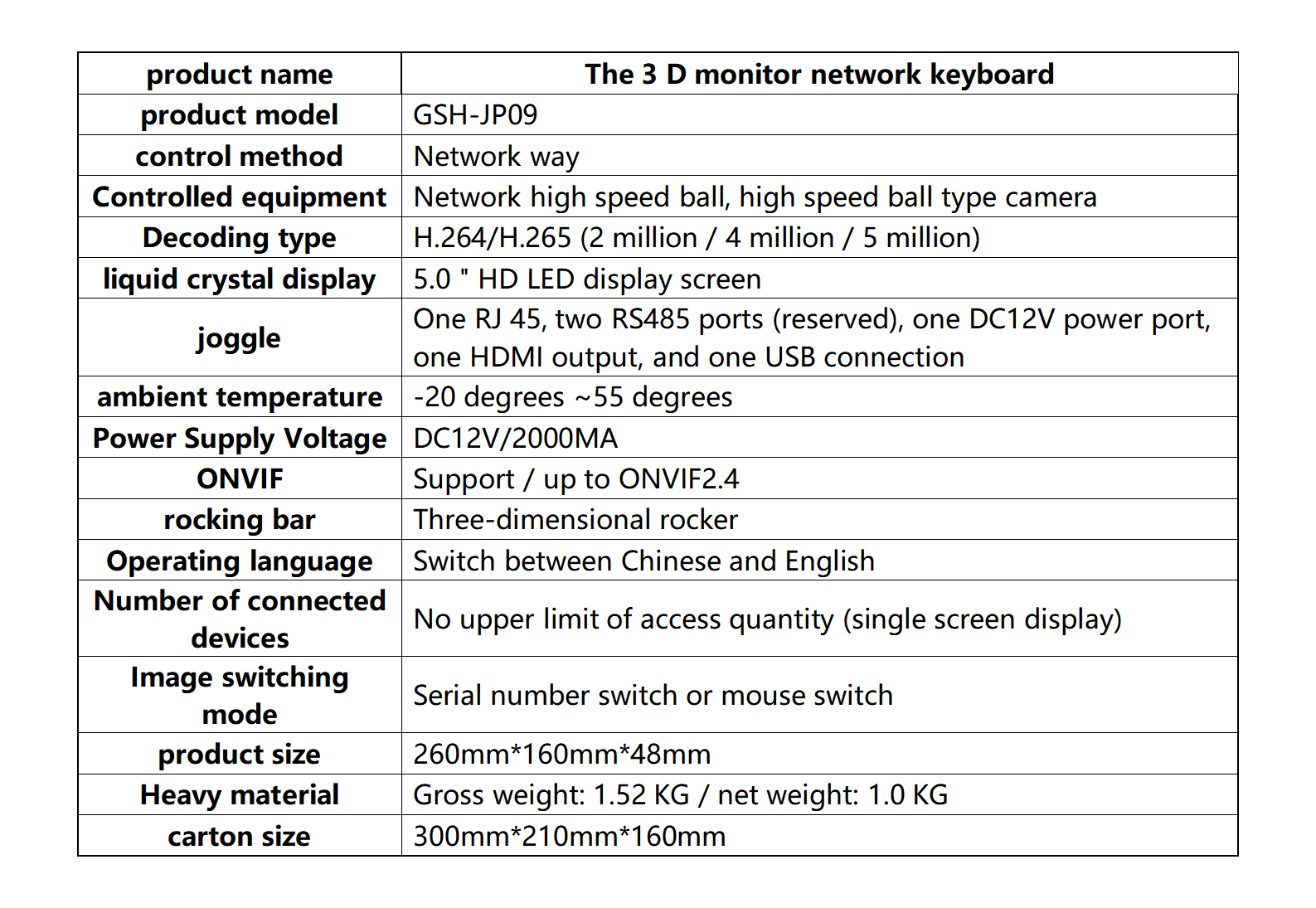

Product technical parameters:

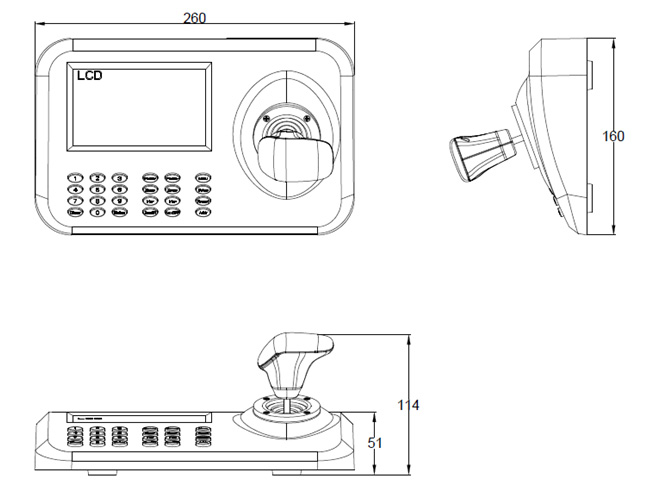

Product size drawing (unit MM) :
