Hd infrared PTZ camera GSH-T200 series

Product features:

PTZ supports a number of mainstream millions of digital HD all-in-one machine movements and high-definition sensors to achieve high-definition image capture;

Using the latest H.264/H.265 video compression algorithm and DSP processing chip and platform, high compression ratio, good image quality, set the built-in head and digital decoder in one;

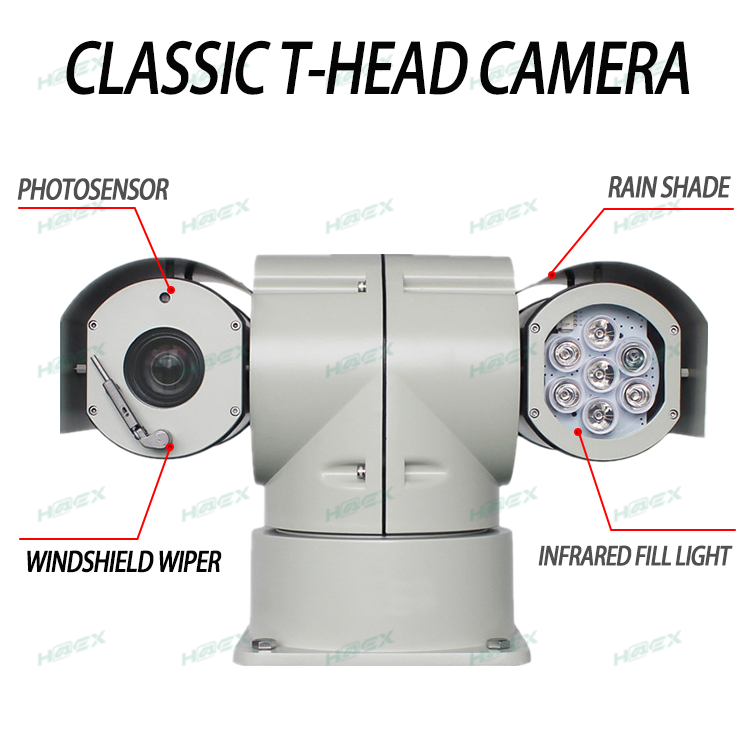

PTZ adopts all-weather environment design, high-strength aluminum alloy casting shell, with sunshade, with wiper;

Optional white light, infrared, xenon, laser and other replenishment methods, night vision distance up to 1000 meters, completely solve the problem of no lighting conditions at night;

Horizontal 360° infinite rotation, look up (+90° ~ -90°) without blind spots;

Automatic cruise, horizontal scanning, camera mode and title display can be set;

Coordinate display, lens magnification display;

Plane base installation, seismic device can be configured to achieve vehicle installation;

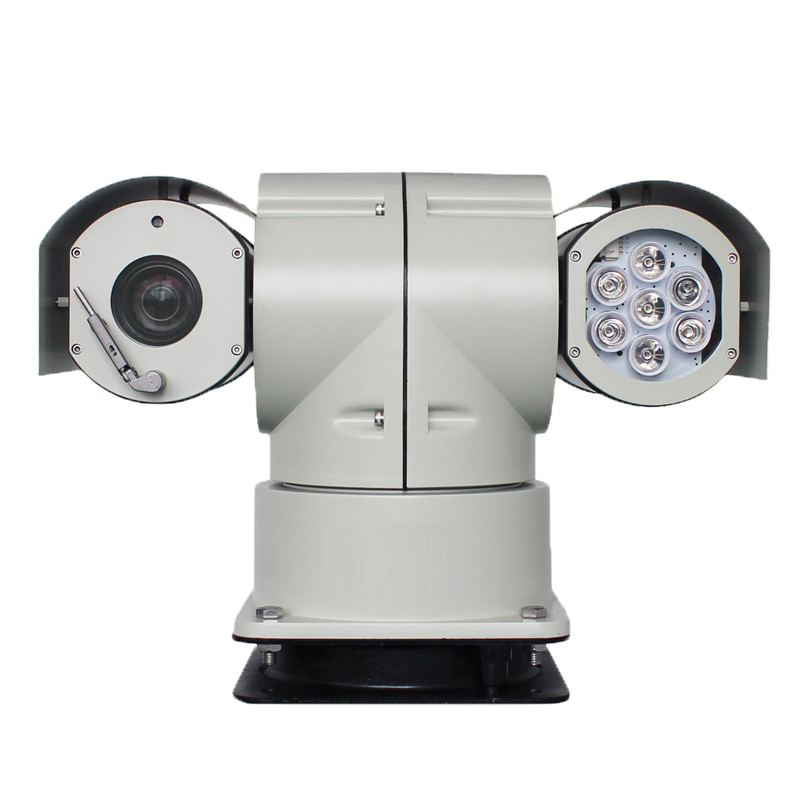

Infrared model: The use of imported array infrared lights, multiple groups of Angle cooperation, the service life of up to 30,000 hours, night vision distance 100-120 meters

White light: The use of high-intensity lattice white light chip, night vision distance 50-80 meters

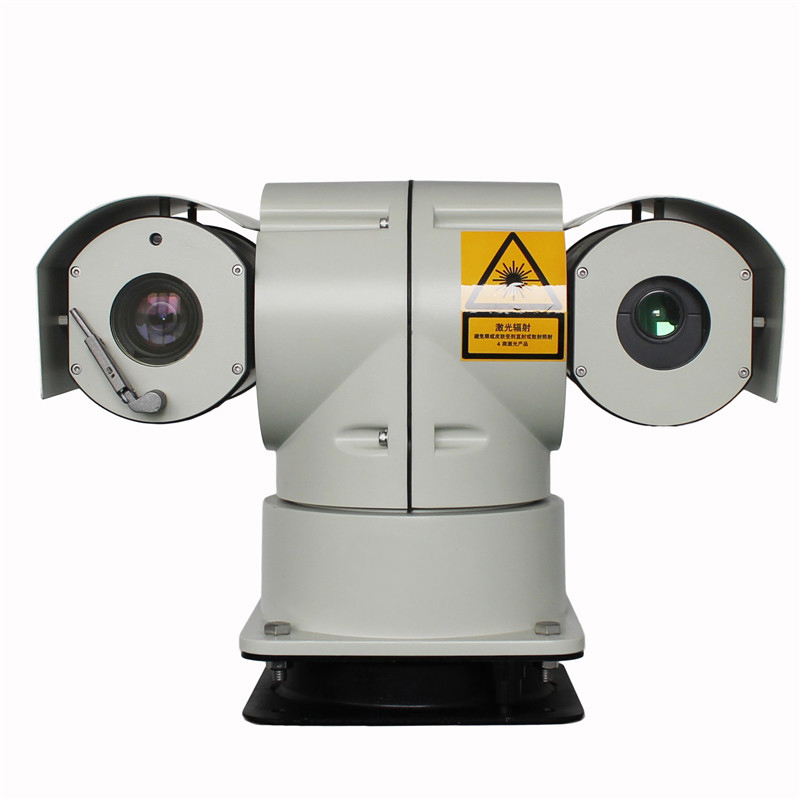

Laser: Imported 808nm laser to achieve synchronous zoom, Angle adjustable or automatic adjustment according to the camera multiple, laser spot Angle 1° to 50°, laser power optional

Thermal imaging model: Thermal imaging equipment can be customized

Network HD: PTC supports mainstream millions of digital HD integrated movement and HD SENSOR to achieve high-definition image capture, compatible with mainstream HD platforms and seamless docking, up to 1080P output support, support dual stream and HD capture, support IE browsing

SDI HD: PVT supports a million pixel full HD movement, HD-SDI digital interface output, a million digital high-definition image lossless, real-time transmission, no delay, a variety of resolutions adjustable (1080p/60 1080p/30 1080p/25 720p/60 720p/30 720p/25)

Coaxial HD: the head supports the universal AHD/CVI/TVI coaxial HD movement, and supports the output of coaxial HD hard disk video recorder, the image does not go through any coding compression, and the full real-time high-definition picture coaxial transmission

Product Application:

110 police car mobile law enforcement/fire emergency command /120 emergency command system/Road administration mobile patrol/urban management law enforcement/Special vehicle mobile inspection

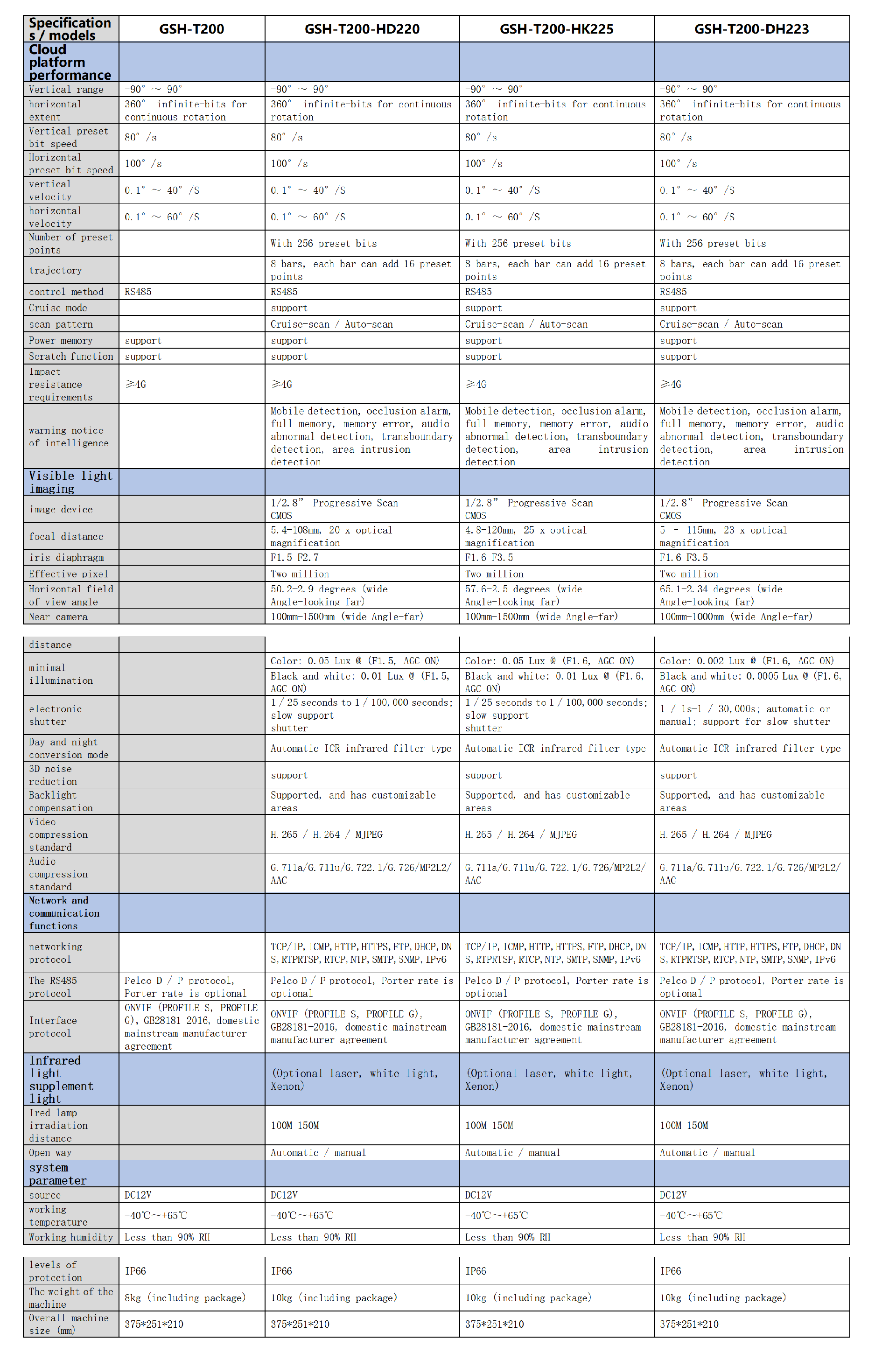

Product technical parameters:

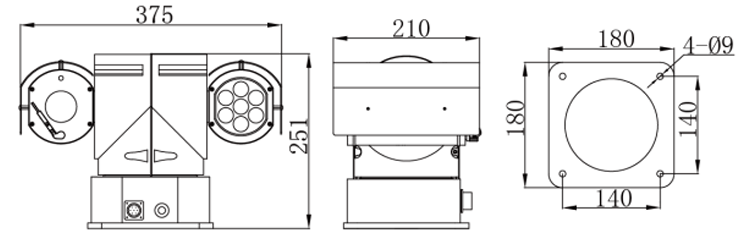

Product size drawing (unit MM) :
