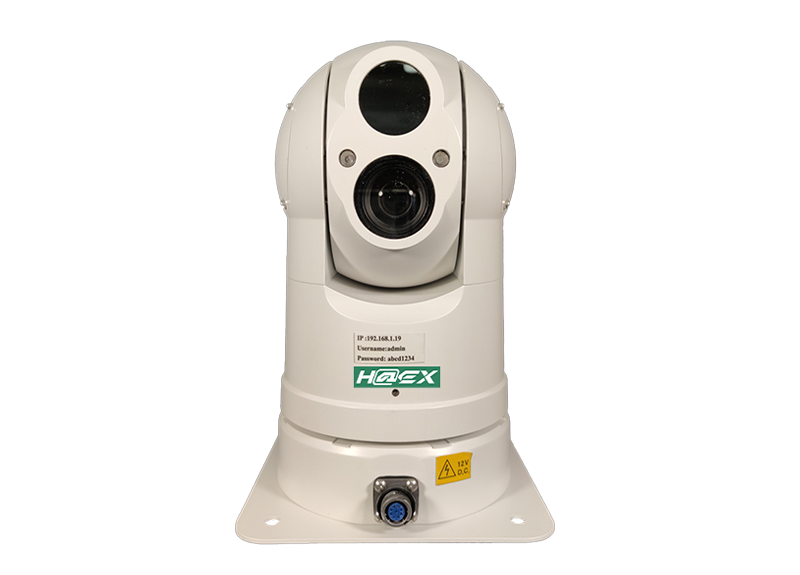

Double spectral thermal imaging PTZ camera GSH-Q200 series

Product features:

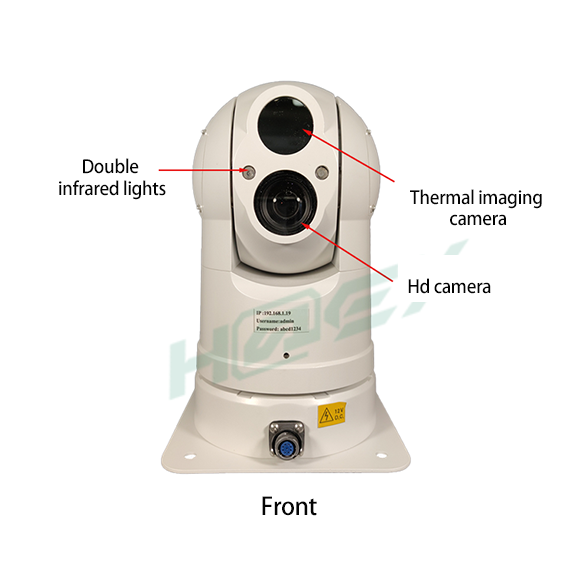

The dual-spectrum thermal imaging system integrates infrared thermal imaging, visible light camera, and PTZ control system to realize all-round video surveillance day and night. With high-precision gyro stabilization system and image tracking system, it has the characteristics of clear and stable picture, long observation distance, and strong environmental adaptability. In bad weather and dark environment can still easily find the target, is the ideal choice for security monitoring, field search and other fields;

Using high-quality focal plane array (FPA) infrared detector, the image is clearer, the movement lens is 5mm ~ 19mm optional, the resolution is 384×288/640×512 optional;

PTZ supports a number of mainstream millions of digital HD all-in-one machine movements and high-definition sensors to achieve high-definition image capture;

Fully closed inner bin, can be filled with nitrogen, sealed environment can effectively extend the life of electronic components, and completely solve the ball machine lens fog problem;

Whether it is a black environment or a strong light occasion, whether it is a haze weather or a smoke environment, you can easily find the ground, jungle personnel, animals, vehicles and so on. Faster personnel search and rescue, more effective law enforcement and forensics;

Support standard ONVIF protocol, back-end compatible with market standard onvif video recorder recording and control;

Universal variable speed head, realize all-round blind Angle monitoring, and achieve high precision positioning;

PTZ standard with original voltage regulator module, filter vehicle instantaneous unstable current, keep PTZ stable state;

PTZ protection level up to IP67, support three levels of lightning protection, surge prevention;

The head can be configured with shock absorber to realize on-board installation;

Product Application:

It is suitable for road patrol, fire emergency, forest fire prevention, electric power monitoring, border coastal defense, petrochemical industry, site investigation, accident handling, emergency repair and other poor lighting conditions

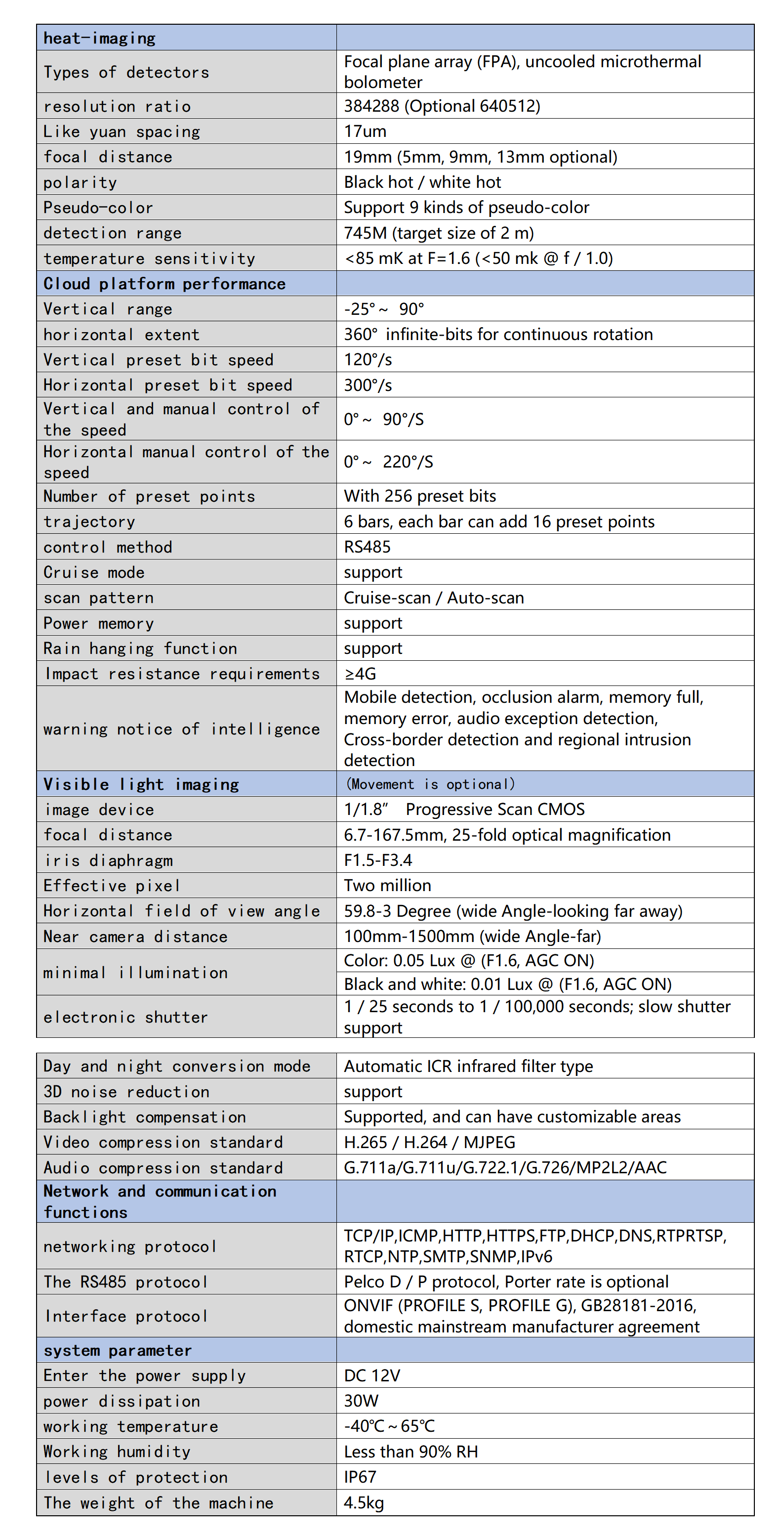

Product technical parameters:

Product size drawing (unit MM) :
