Vehicle dynamic forensics system integrated GSH-JP09 series

With the development of science and technology, 4G wireless network technology is becoming more and more mature, and the management command center can grasp the law enforcement process of the administrative law enforcement team at any time by watching the high-definition scene picture in real time, dispatching command at any time, and the efficient, perfect and stable technology provides a solid guarantee for the administrative law enforcement management department.

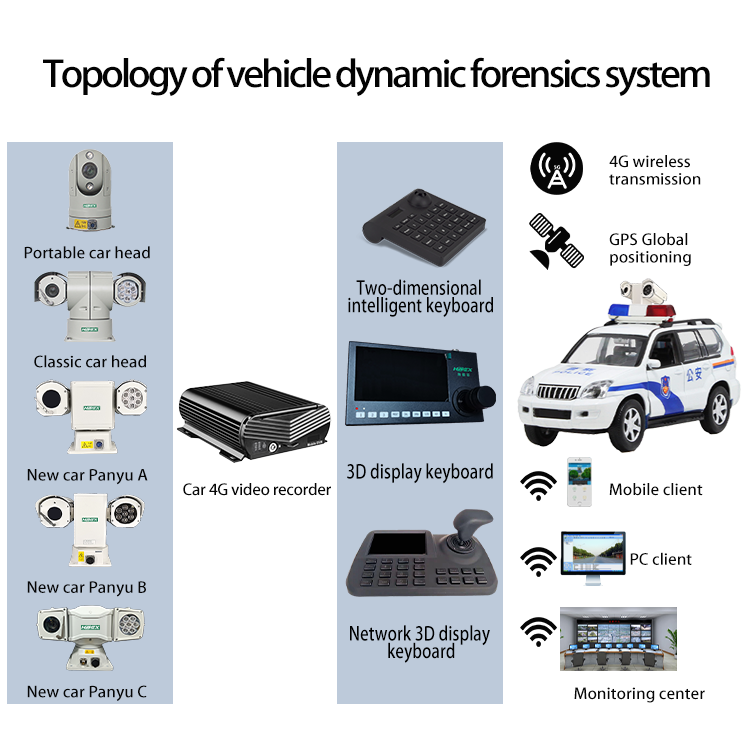

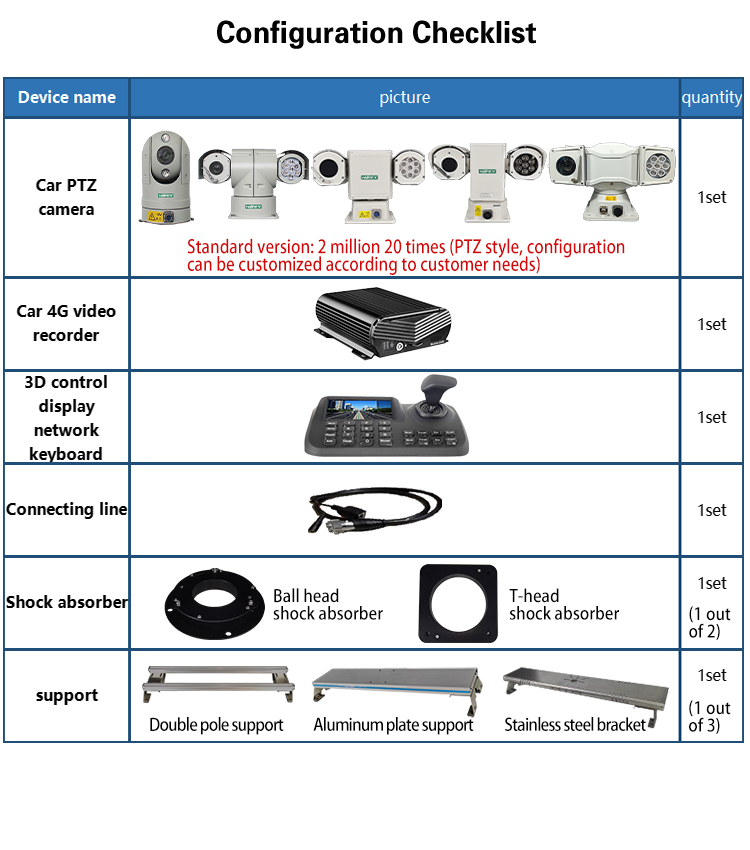

Mobile car camera system package includes: a car head (standard version 2 million 20 times), a car video recorder, a keyboard display, a set of mounting bracket, a shock absorber, a set of cables.

Product features:

Car head: HD infrared car head, 360 degree multi-dimensional panoramic head, using high-strength aluminum alloy casting shell, built-in constant temperature, defrosting device, all-weather environment design; Imported from Germany dot matrix infrared light, day and night ICR filter automatic switching, night vision distance of 100 meters, 2 million 1080P full real-time HD, 20 times HD integrated machine movement, auto focus

Car hard disk video recorder: H.264 video compression format, high compression ratio, clear image, support 4 HD video input, support 4G back command center, built-in GPS to achieve vehicle positioning, two-way voice intercom, maximum support 2T hard disk, support expanded WIFI

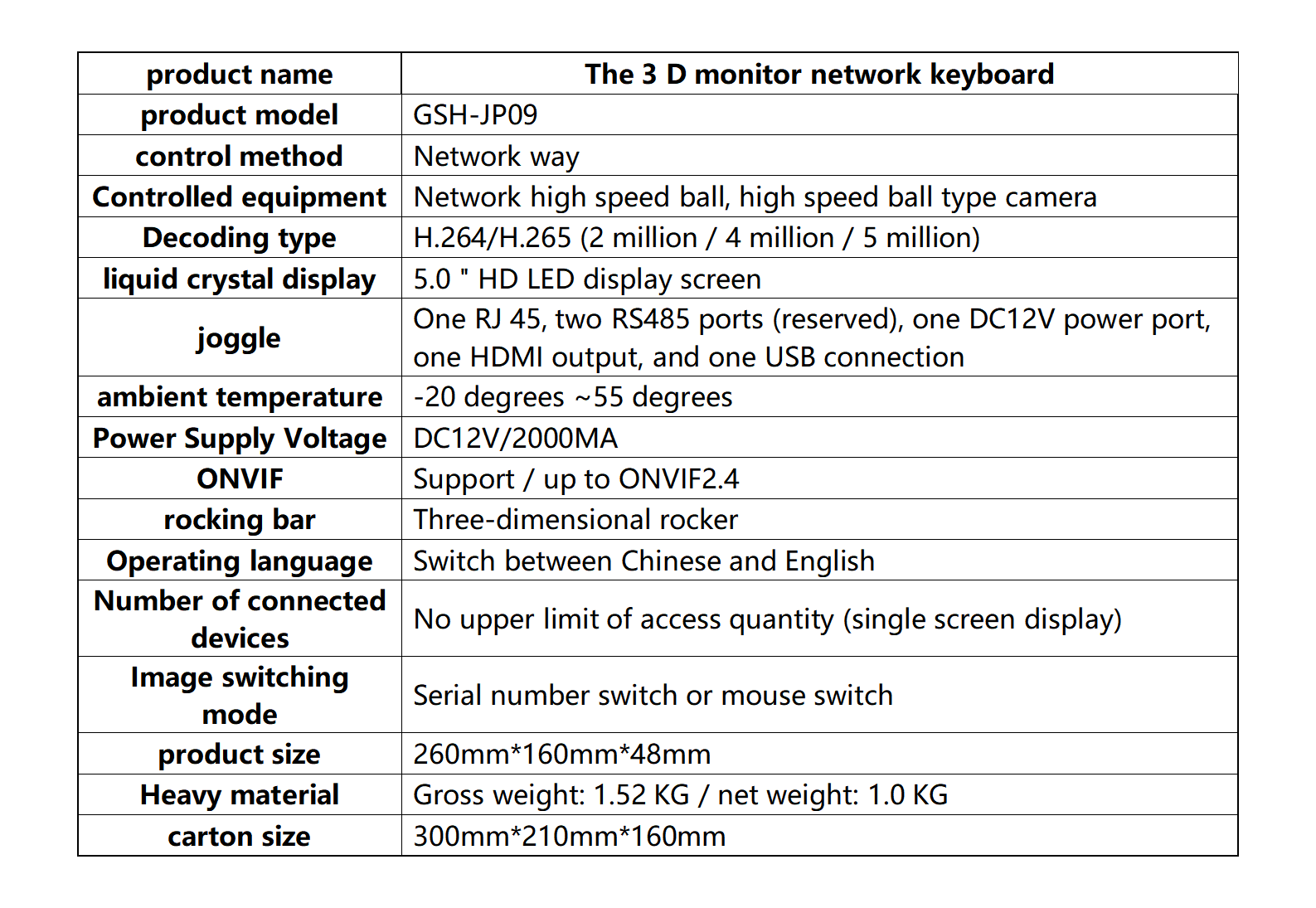

Network display control keyboard: simple operation, plug and play, without any setting; Powerful hard decoding function, the industry is the first to achieve IP ball access without ceiling, suitable for large safe city projects, support 5.0"LED LCD HD real-time display; Support HDMI output function, to achieve synchronous switching between the main screen of the console and the control device (with matrix switching function)

Connecting cable: All interfaces adopt the integrated interface of aviation head, simple, safe and stable

Shock absorber: metal + rubber material, not easy to deformation, not easy to corrosion, strong bearing capacity, stable shock absorption

Mounting bracket: used for roof fixed head, the standard model is suitable for models with less than 7 seats, and other models are customized according to customer requirements.

Product Application:

Suitable for 4G map transfer, duty and other car installation, can be used in criminal or investigation, emergency rescue, site investigation, construction operations, accident handling, emergency repair and other lighting conditions poor environment.

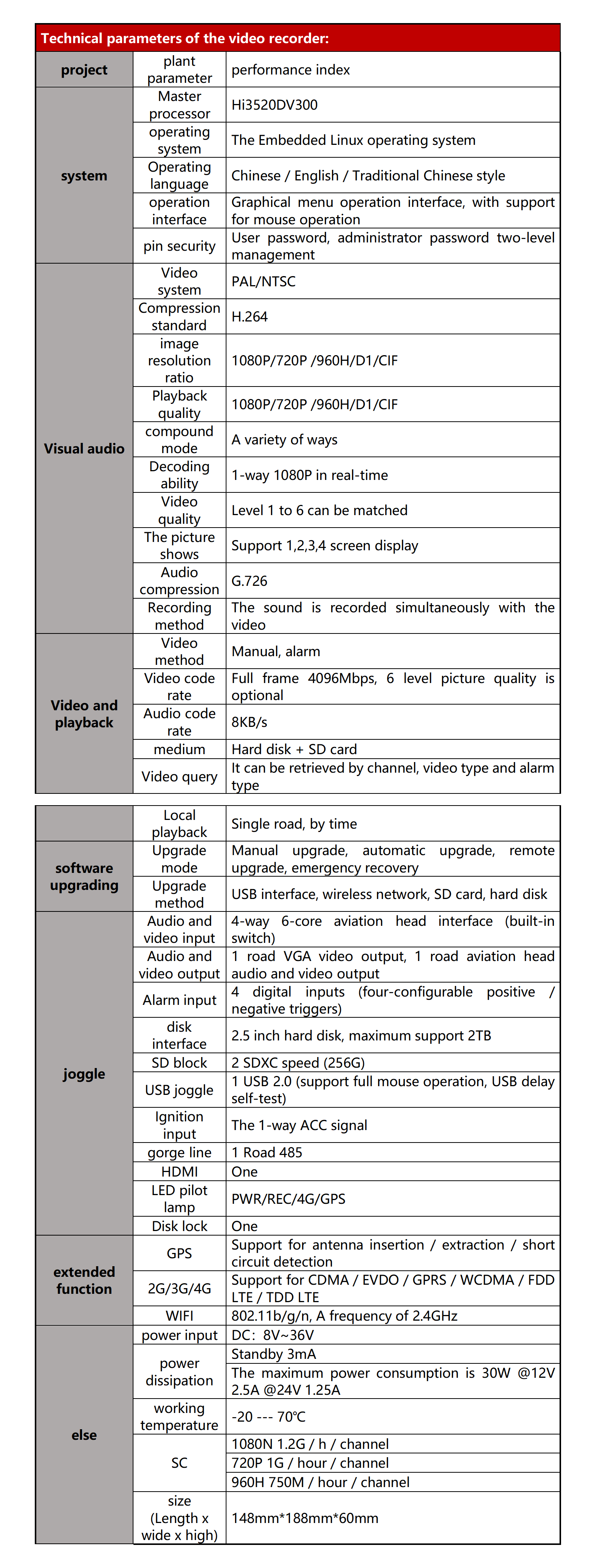

Product technical parameters:
