Two-dimensional intelligent control keyboard GSH-JP01

Product Overview:

This control keyboard is designed for more convenient control of front-end equipment such as fast ball and head.

Special Features:

Displays the protocol and baud rate of the current control address in real time

Firmware program can be refreshed online

Chinese and English speech choice

Adjust and control the maximum speed of the head or ball machine

Adjust the volume of the key tone

Product features:

RS485 control bus, can control up to 255 high-speed ball cameras

All input and output communication ports are lightning protection design, strong anti-interference ability, standard transmission distance up to 1200 meters

Good communication compatibility, built-in Pelco-p, Pelco-d, and other mainstream control protocols

Keyboard operation password on/off/lock function

The LCD screen displays its running status in real time

Application:

It is used for all occasions that require quick control of front end fastball, head head, electric lens, outdoor shield wiper, etc.

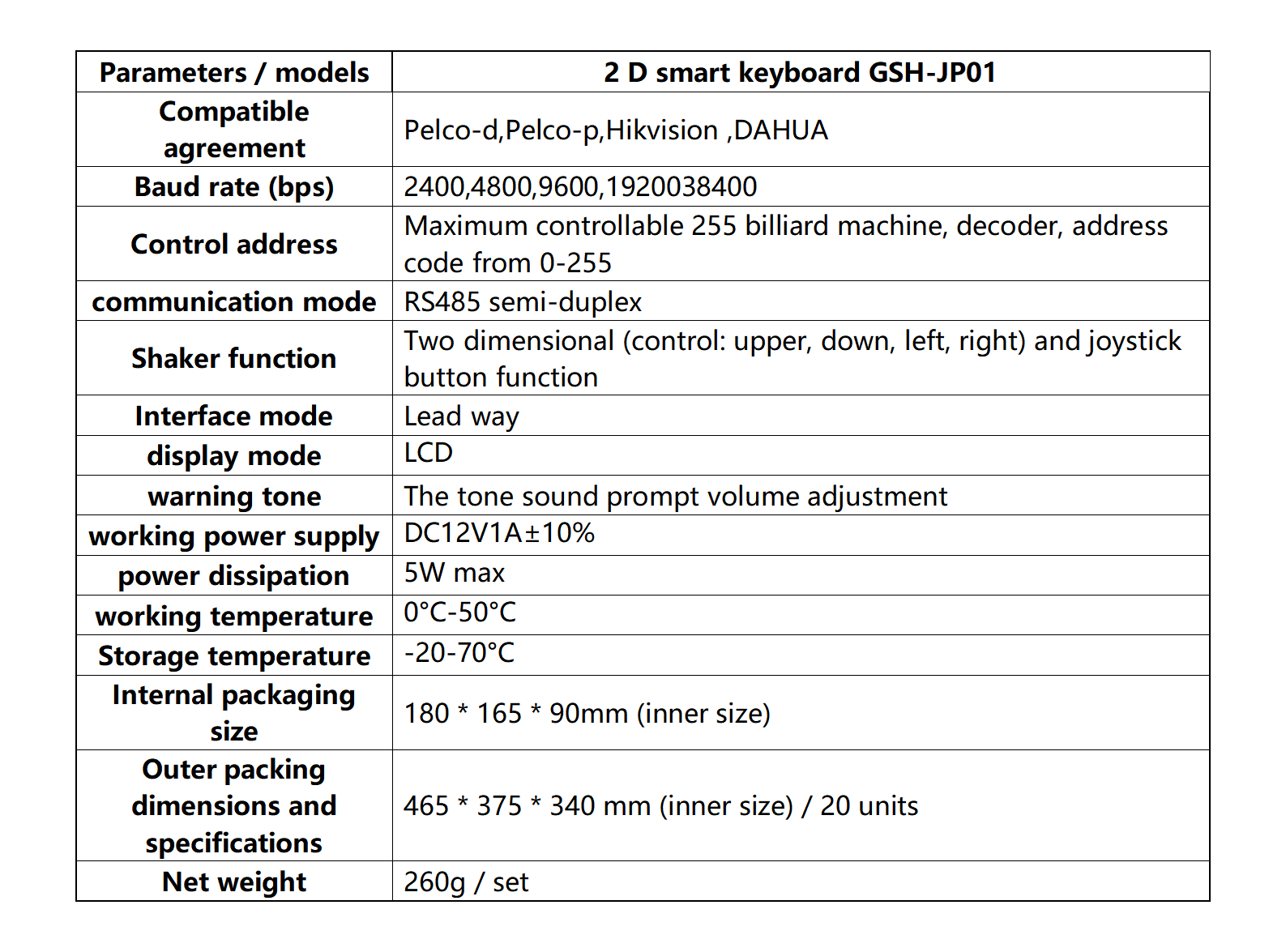

Product technical parameters:

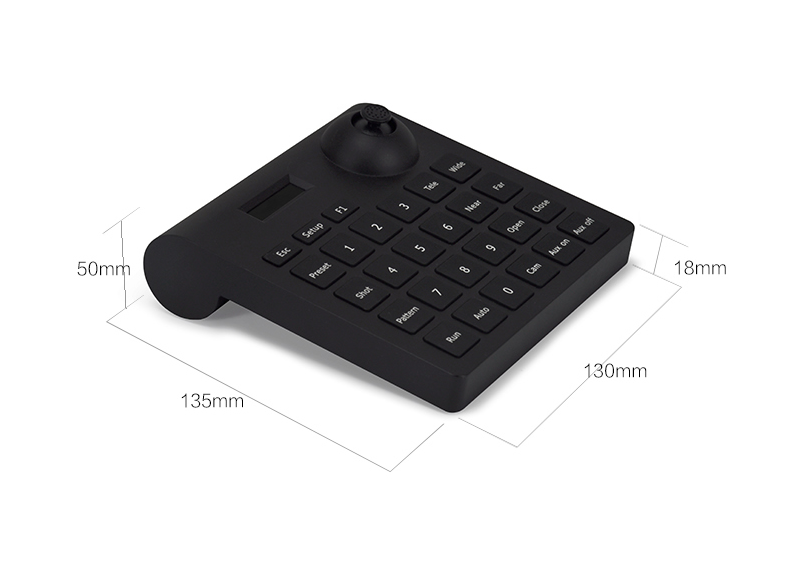

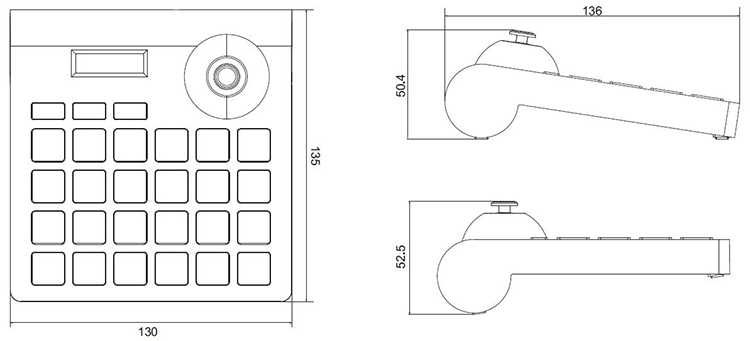

Product size drawing (unit MM) :
