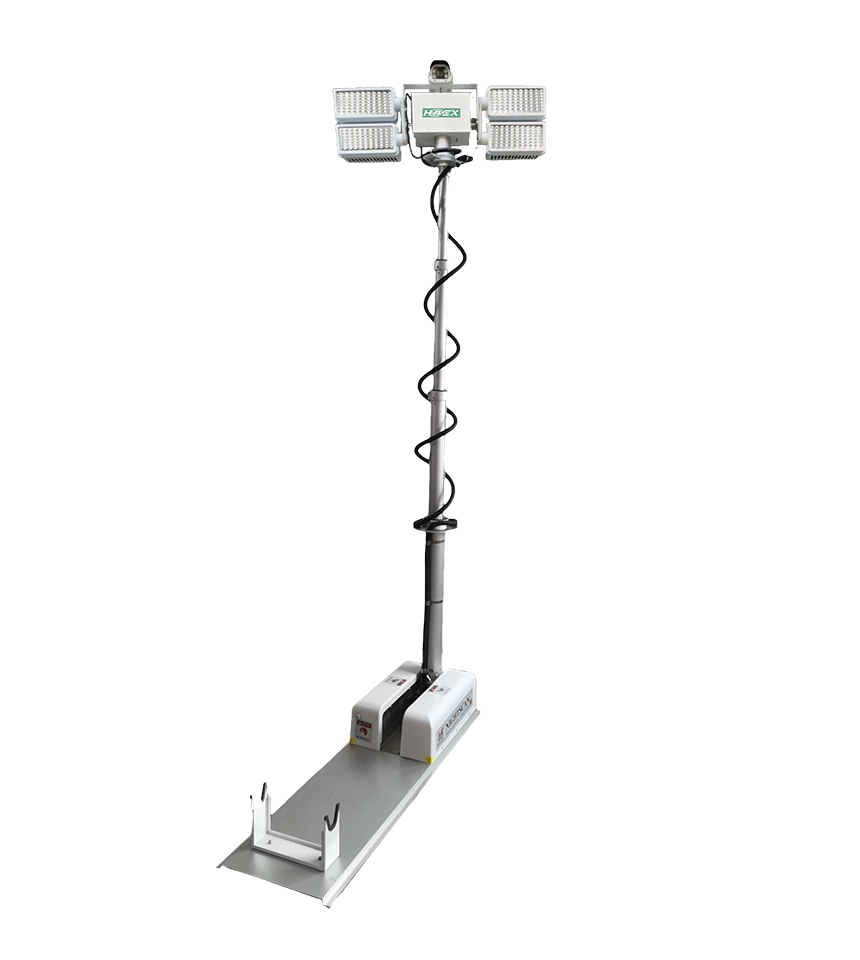

Car lift rod lighting/monitoring GSH-DF150 series

If the standard configuration of this product can not meet the needs of customers, our company can adjust the lamp bulb power, flooding or concentrating type, the lifting height of the telescopic cylinder and other equipment according to customer requirements to meet the individual needs of customers.

Product features:

GSH-DF150 vehicle lifting lighting equipment lifting gas rod lifting total height of 2.5m vehicle mobile emergency lifting lighting system, can be installed on the roof of small cars and medium-sized cars, the system operating voltage is AC220V (voltage is optional).

The lamp parts are fixed on the lamp pole by rotating the PTZ, which has the functions of lifting, falling, lifting and descending. The equipment is lifted from the initial horizontal position to 90 degrees and then extended upward to a height of 2.5 meters. The emergency lighting and all-round mobile emergency lighting search and positioning function are completed by rotating the PTZ in an all-round way. Suitable for night lighting, site investigation, emergency lighting.

GSH-DF150 vehicle lift lighting equipment uses high-brightness LED as the light source, provides 4X100W lighting power, optional multi-lamp combination, lighting area is larger, distance is far, product light efficiency is high, color temperature is close to daylight and long life.

The use of metal lamp head components, to achieve 360 degrees of large area flood lighting, 100W high-brightness LED lighting up to 100-200 meters, LED light source with seconds bright function, to solve the metal halide lamp in the use of sudden power failure can not immediately start the lighting technical defects.

This product can be used instead of gold halide lamp; Gold halide lamp disadvantages: hot start gold halide lamp life is short and the failure rate is high, these will not appear in LED lamps, lamps can be used for a long time, maintenance free new energy-saving products.

LED light source car lift lighting equipment lamps support quick switching lamps, do not need to wait; Improved efficiency of emergency lighting and flexible performance at night.

LED light source vehicle lift lighting equipment after reset with 100Km/h wind resistance.

Product Application:

It is suitable for cars, pickup trucks, jeeps, ordinary command vehicles, lighting vehicles, medium and small restructuring vehicles, as the lighting of the car back overhead mobile emergency, emergency rescue, accident investigation, fire emergency, police scene, municipal emergency repair, site construction, etc

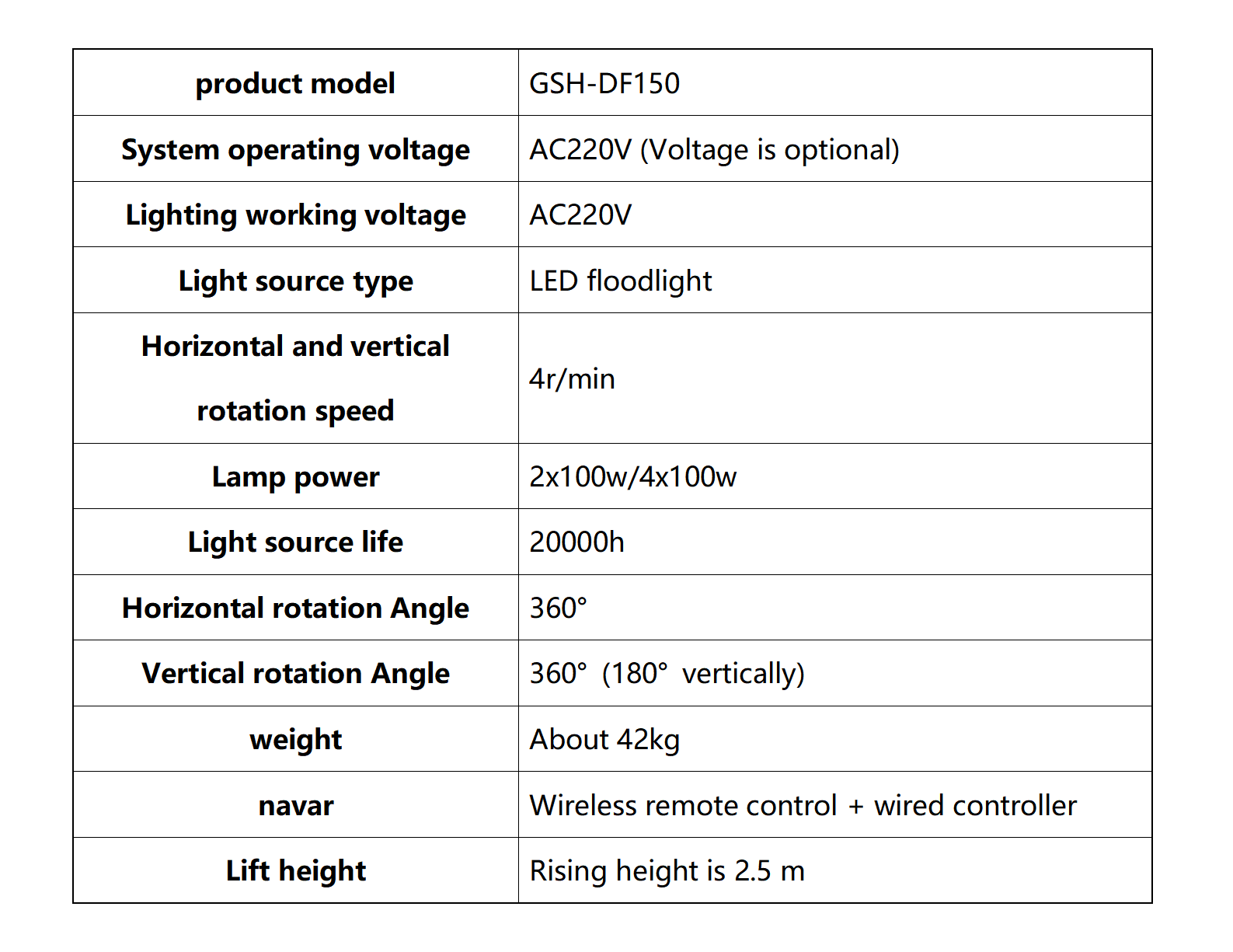

Product technical parameters:
