Vehicle intelligent lifting lever platform GSH-DF100 series

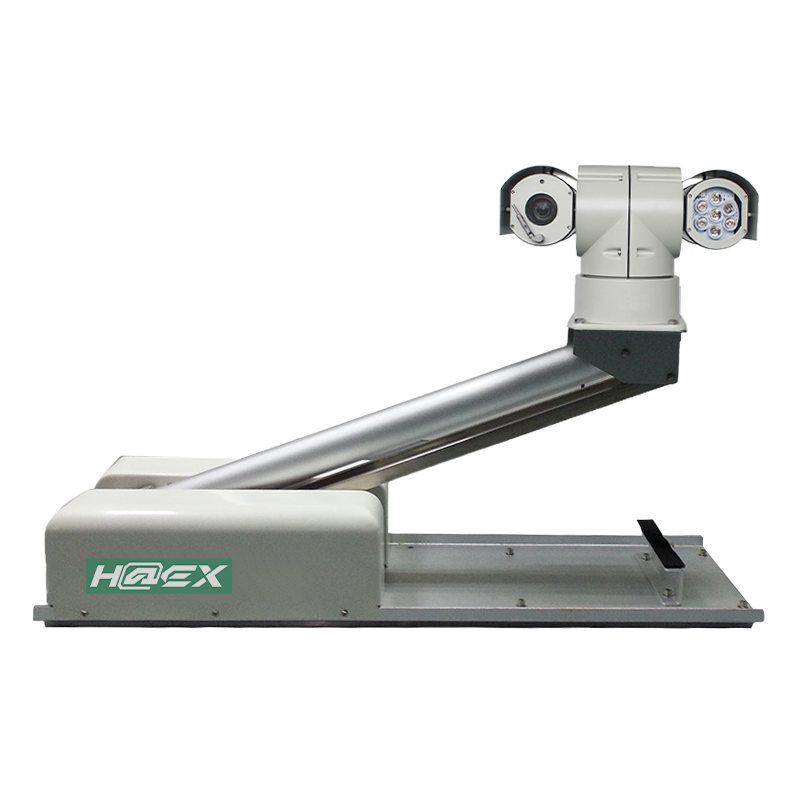

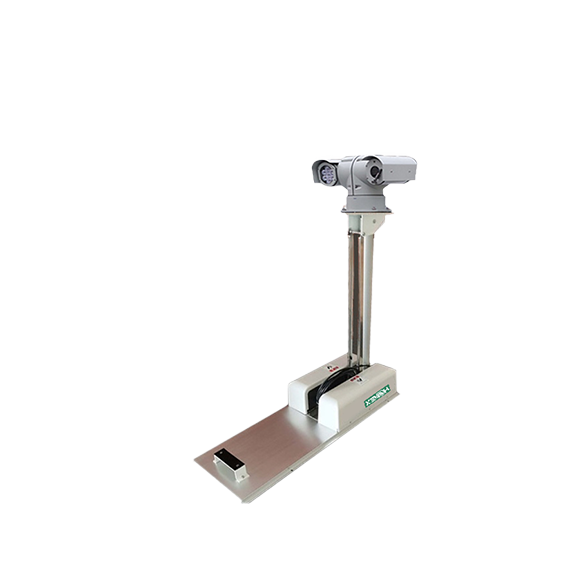

This product is a simple vehicle-mounted lodging mechanism with the function of lying down and standing up, rising and falling, and the top is equipped with an installation platform to install antennas, head, lamps, cameras, radar equipment and so on.

Product features:

The conventional mechanism will carry the equipment from 0 degrees to 90 degrees, the height of up to 1 meter, can be operated through the wireless remote control, wired controller, RS485 signal keyboard to operate the working height of the mechanism and lie on the roof.

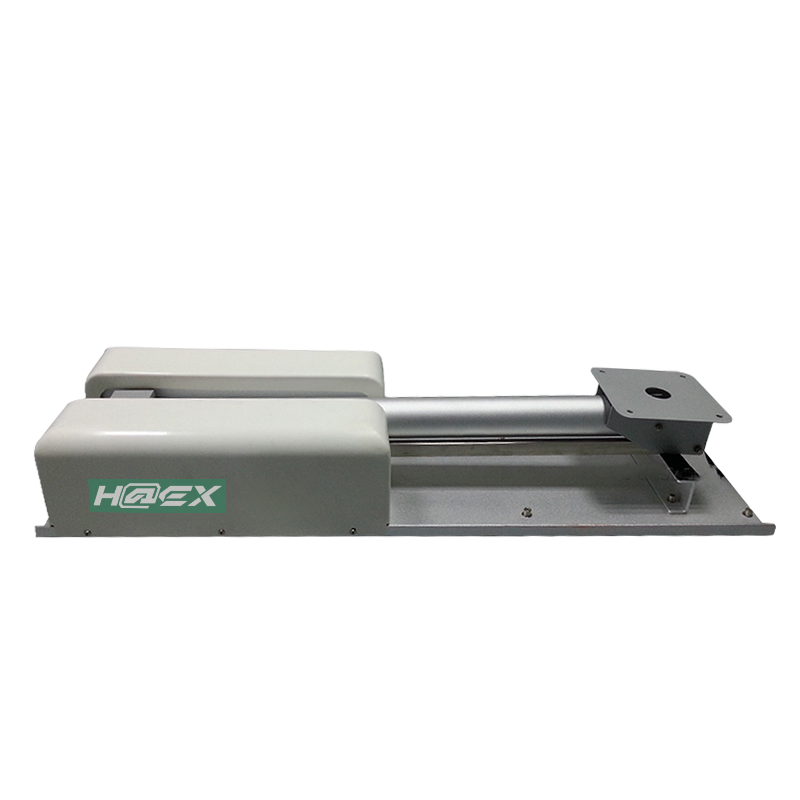

After lodging, the platform is in a horizontal position, and the camera and lighting can be used normally.

Application scope: forest fire emergency power emergency repair traffic road monitoring accident site inspection

Standard: Wired controller Wireless remote control roof mounting rack

Operating voltage: DC12 or DC24

Working current: 9A

Operating range: 0-90°

Control mode: remote control

Load-bearing range: ≤20kg

Overall weight: 25kg

Product Application:

It is suitable for cars, pickup trucks, jeeps, ordinary command vehicles, lighting vehicles, medium and small restructuring vehicles, as the lighting of the car back overhead mobile emergency, emergency rescue, accident investigation, fire emergency, police scene, municipal emergency repair, site construction, etc

Product size drawing (unit MM) :
