Car hard disk recorder NVR video surveillance storage box capacity 2T storage 4G remote image transmission positioning GPS

Product features:

Built-in Hisilicon high-performance image processing chip, H.264 encoding, high compression ratio, clear image

Support 4 digital million HD/analog standard definition video audio input,1 video audio synchronous output,1 VGA output

Supports 4 channels of 1080P HD real-time local recording

Supports 4-channel 720P HD real-time local recording

Supports 4 channels of 960H HD real-time local recording

Power Supply:

Professional vehicle power supply with 8-36V DC wide voltage input design

Undervoltage, short circuit, reverse connection and other protection circuit, suitable for various models

Support intelligent power management identification, low power automatic shutdown, low power consumption

Data storage:

Special file management mechanism is adopted to encrypt data and effectively protect data security

Proprietary disk bad track detection technology ensures video continuity and prolongs disk life

Built-in supercapacitor prevents data loss and disk damage due to abnormal power outages

Supports 2.5-inch hard disks and a maximum of 2TB

Supports SD card storage, up to two 256G cards

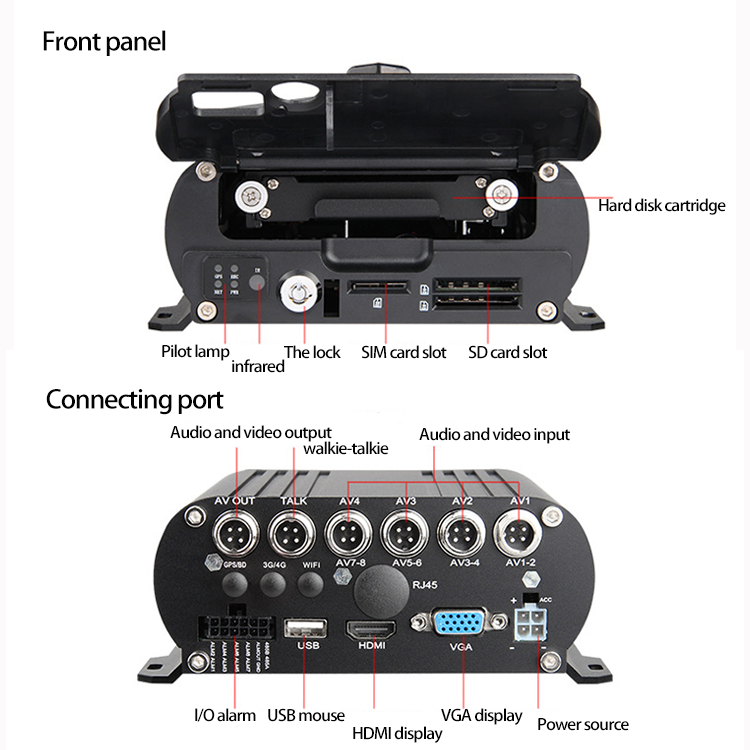

Interface transmission:

Support GPS/BD positioning, high sensitivity, fast positioning

Support WIFI wireless download, support 802.11b/g/n, frequency 2.4GHz

Built-in 3 g / 4 g / 5 g module, support LTE/hsupaare/HSDPA/WCDMA/EVDO

Product Application:

Suitable for trucks, buses, engineering vehicles, buses, commercial vehicles, harvesters and so on

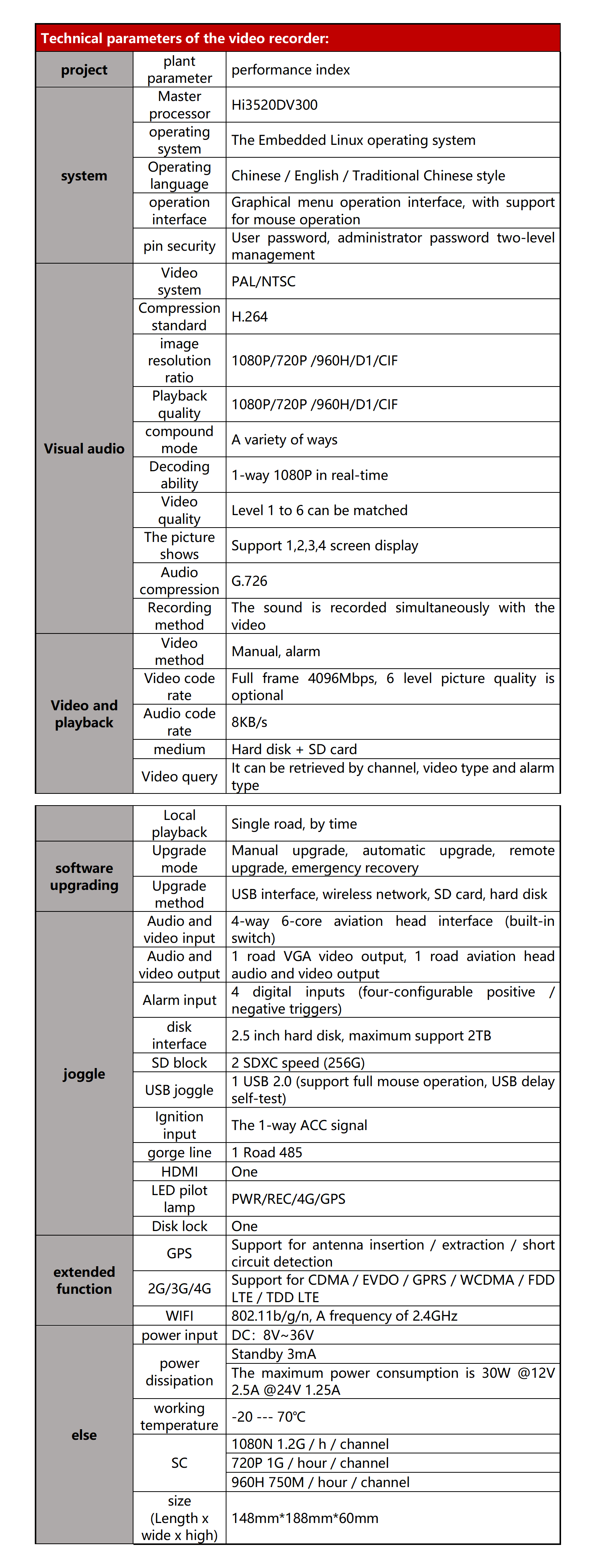

Product technical parameters:

Product size drawing (unit MM) :
