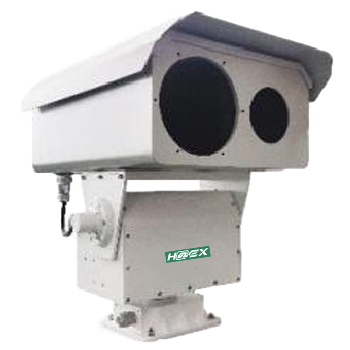

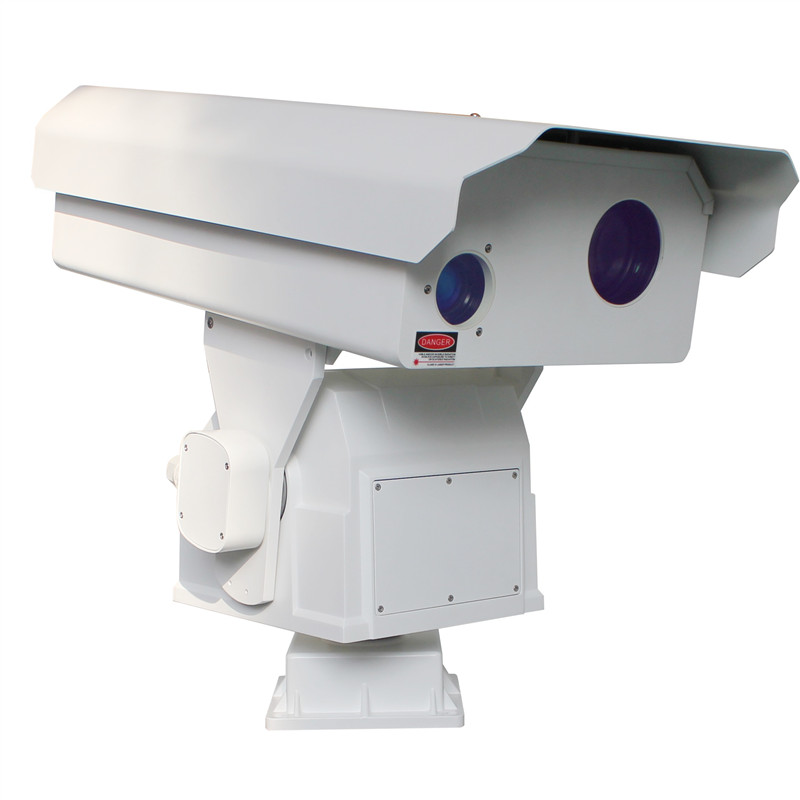

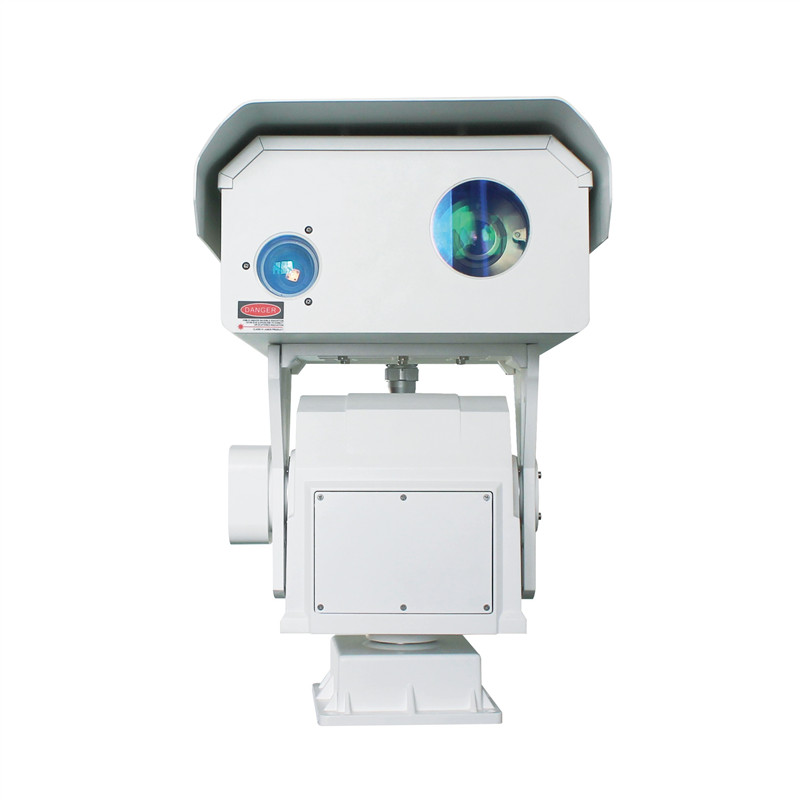

Medium and long range load HD laser night vision multi-spectral shield PTZ camera GSH-Z500 series

Product features:

Multi-fill dual-spectrum PTZ camera, can integrate laser night vision, infrared thermal imaging, visible light camera, PTZ control system, to achieve a full range of day and night video surveillance, with high-precision gyro stabilization system and image tracking system, with clear and stable picture, long observation distance, strong environmental adaptability and other characteristics, in bad weather and black environment can still easily find the target. Is the ideal choice for security monitoring, field search and other fields;

Using fiber coupled laser light, homogenizing fill light, high photoelectric conversion rate, high light energy utilization rate, synchronous zoom, lighting Angle continuous adjustable, higher reliability, laser night vision distance up to 2KM;

Using high-quality focal plane array (FPA) infrared detector, the image is clearer, the movement lens is 35 ~ 180mm optional, the resolution is 384×288/640×512 optional;

PTZ supports a number of mainstream millions of digital HD all-in-one machine movements and high-definition sensors to achieve high-definition image capture;

Whether it is a black environment or a strong light occasion, whether it is a haze weather or a smoke environment, you can easily find the ground, jungle personnel, animals, vehicles and so on. Faster personnel search and rescue, more effective law enforcement and forensics;

Laser power 10W-30W optional, laser spot Angle 1° to 50°, convenient night vision monitoring;

PTZ adopts dynamic voltage drive technology, high load capacity, strong wind resistance and earthquake resistance;

Professional structure design, professional wiper structure, high and low temperature test design, high temperature and snow resistance;

The head is designed with large transmission ratio of turbo worm, metal structure, copper gear disc, large torque, strong bearing capacity, and high strength self-locking ability after power failure;

Built-in heater, even in extremely cold and harsh environments, the monitor can get perfect monitoring images;

Infrared thermal camera and camera through video switching to achieve 24 hours of all-weather monitoring;

The camera compartment can use 900MM integrated large lens with thermal imaging to achieve long-distance monitoring, the effective monitoring distance during the day can reach 5-10 kilometers, the specific structural design can make the camera in the maximum multiple of the image picture is still stable, near and far;

Product Application:

Products all-weather design, suitable for railway, forest fire prevention, safe cities, prisons, warehouses, oil fields, oil depots, long-distance pipelines, large factories, mining areas, freight yards, border and sea lines of defense, maritime and fishery administration, ecological protection areas, reservoirs, military bases and other outdoor and harsh environment places.

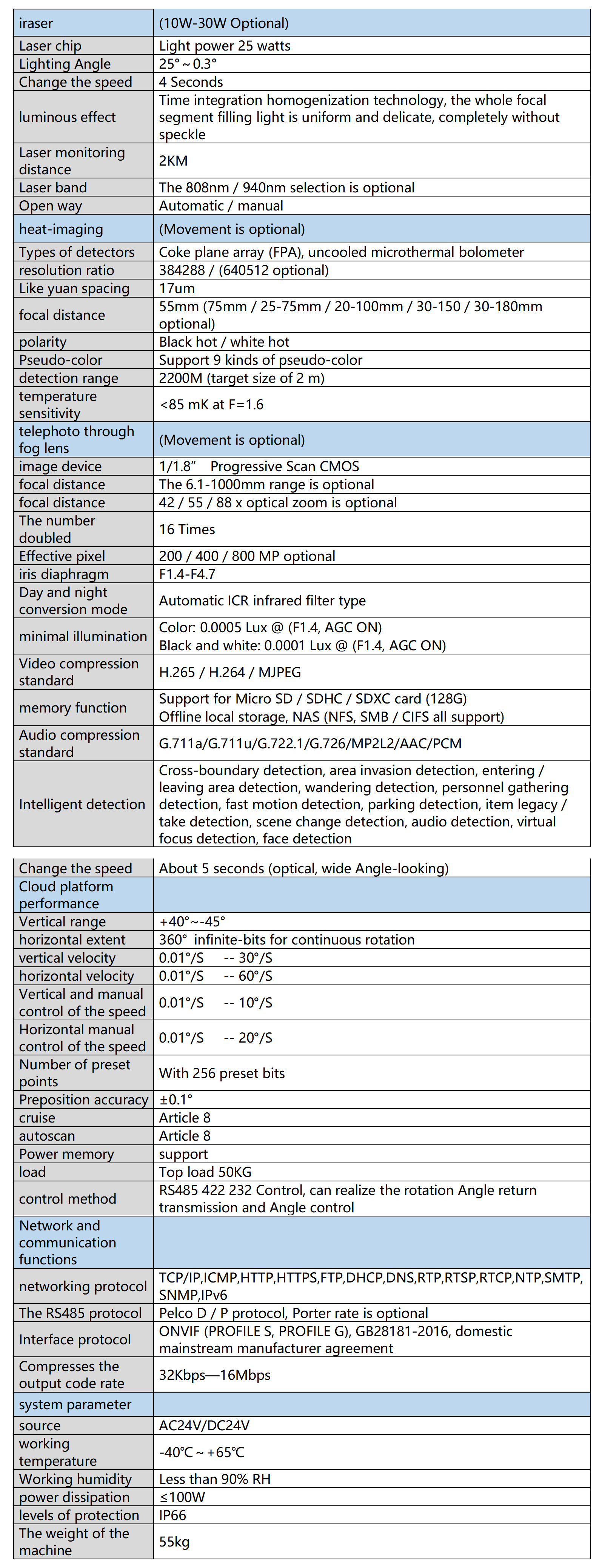

Product technical parameters:
