High definition medium and long range visible light thermal imaging dual spectrum PTZ camera GSH-T700 series

Product features:

The dual-spectrum thermal imaging system integrates infrared thermal imaging, visible light camera, and PTZ control system to realize all-round video surveillance day and night. With high-precision gyro stabilization system and image tracking system, it has the characteristics of clear and stable picture, long observation distance, and strong environmental adaptability. In bad weather and dark environment can still easily find the target, is the ideal choice for security monitoring, field search and other fields;

Using high-quality focal plane array (FPA) infrared detector, the image is clearer, sensitivity < 50mk@f/1.0, easier to find small targets, movement lens 19mm ~ 200mm optional, 384×288/640×512 optional resolution;

PTZ supports a number of mainstream millions of digital HD all-in-one machine movements and high-definition sensors to achieve high-definition image capture;

PTZ adopts dynamic voltage drive technology, high load capacity, strong wind resistance and earthquake resistance;

In tracking mode, the turntable can automatically rotate as the target being tracked moves. The user can select the target to track in the infrared or visible image, and the tracking mode is very simple with the press of a button.

PTZ environment adaptability, with strong anti-interference and can adapt to a variety of complex electromagnetic environment;

The head is designed with large transmission ratio of turbo worm, metal structure, copper gear disc, large torque, strong bearing capacity, and high strength self-locking ability after power failure;

With fog removal function, to ensure that the camera shows a clear picture all day long, with automatic heating function, in extreme cold harsh conditions to ensure normal operation;

Provided with internal heaters and internal and external fans, even in the cold or direct sun can work normally;

The camera compartment can choose an integrated HD camera with a focal length of 500mm and a thermal imaging range of 30mm-200mm to achieve middle and long distance monitoring, and the effective monitoring distance during the day can reach 50 meters to 5 kilometers or more;

The specific structure design can make the camera at the maximum multiple of the image picture is still stable, near and far;

Product Application:

Products all-weather design, suitable for railway, forest fire prevention, safe cities, prisons, warehouses, oil fields, oil depots, long-distance pipelines, large factories, mining areas, freight yards, border and sea lines of defense, maritime and fishery administration, ecological protection areas, reservoirs, military bases and other outdoor and harsh environment places.

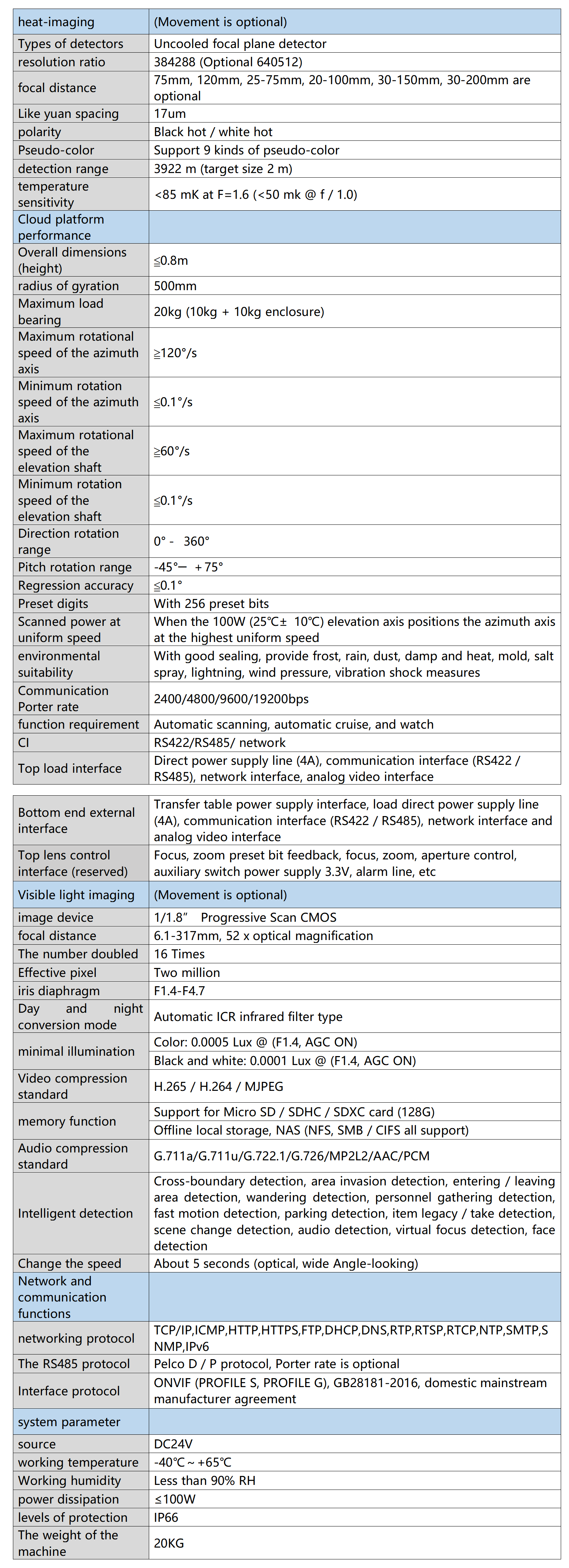

Product technical parameters:
