Multi-function load head turntable GSH-Z200 series

Product features:

Maximum load 20kg

Top load, side load (maximum side load 20KG)

Supports RS485 Angle return and Angle control functions

Horizontal speed up to 0.1°/s ~ 25°/s, vertical speed up to 0.1°/s ~ 25°/s

All-weather environment design, IP66 protection level

Can be widely used in forest fire prevention, coastal border defense

River (sea) bridge, highway and other important areas

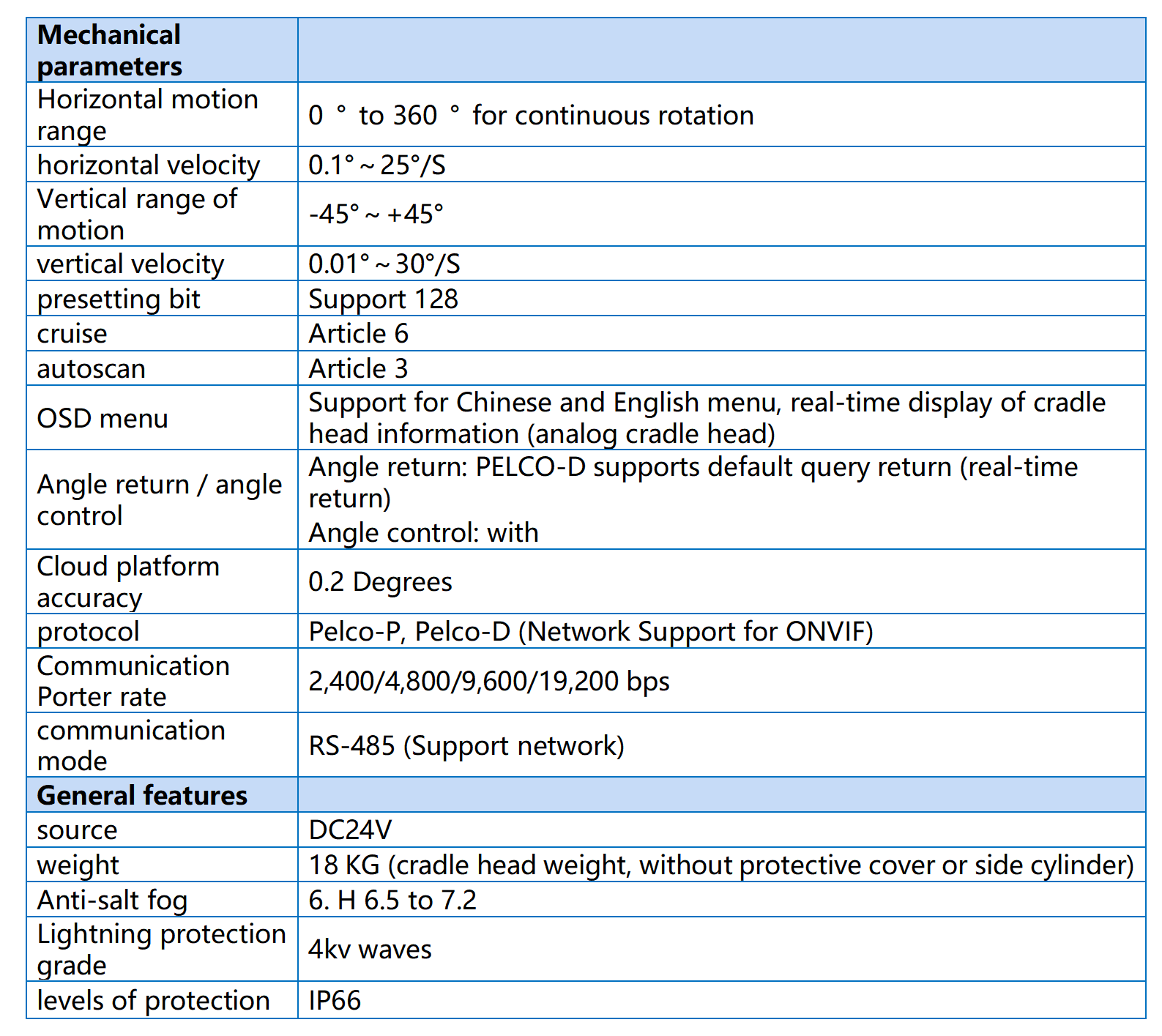

Product technical parameters:

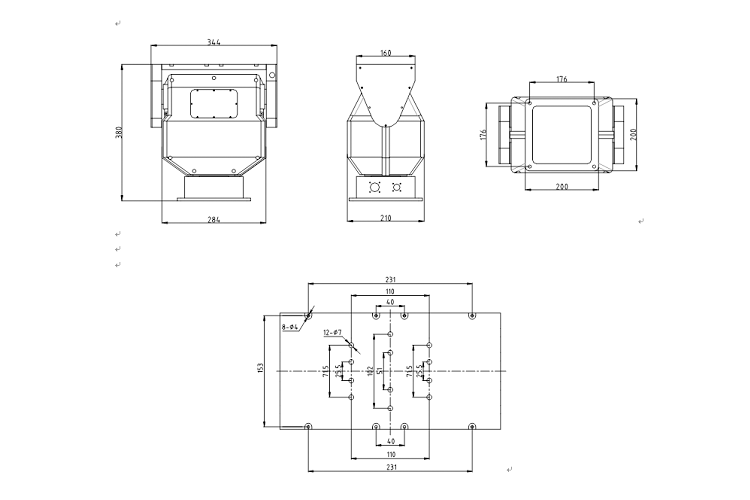

Product size drawing (unit MM) :
