Long distance laser night vision double spectrum PTZ camera GSH-T600 series

Product features:

Long distance double spectrum PTZ camera, integrated laser night vision, infrared thermal imaging, PTZ control system, to achieve a full range of day and night video surveillance, with high precision gyro stabilization system and image tracking system, with clear and stable picture, long observation distance, strong environmental adaptability and other characteristics. In bad weather and dark environment can still easily find the target, is the ideal choice for security monitoring, field search and other fields;

Using fiber coupled laser light, homogenizing fill light, high photoelectric conversion rate, high light energy utilization rate, synchronous zoom, lighting Angle continuous adjustable, higher reliability, laser night vision distance up to 2KM;

Using high-quality focal plane array (FPA) infrared detector, the image is clearer, sensitivity < 50MK@F/1.0, easier to find small targets, movement lens 19MM ~ 200MM optional, 384×288/640×512 optional resolution;

PTZ supports a number of mainstream millions of digital HD all-in-one machine movements and high-definition sensors to achieve high-definition image capture;

Whether it is a black environment or a strong light occasion, whether it is a haze weather or a smoke environment, you can easily find the ground, jungle personnel, animals, vehicles and so on. Faster personnel search and rescue, more effective law enforcement and forensics;

Laser power 10W-30W optional, laser spot Angle 1° to 50°, convenient night vision monitoring;

Infrared thermal camera and camera through video switching to achieve 24 hours of all-weather monitoring;

The camera compartment can choose an integrated HD camera with a focal length of 500mm and a thermal imaging range of 30mm-200mm to achieve middle and long distance monitoring, and the effective monitoring distance during the day can reach 50 meters to 5 kilometers or more;

The specific structure design can make the camera at the maximum multiple of the image picture is still stable, near and far;

Product Application:

Products all-weather design, suitable for railway, forest fire prevention, safe cities, prisons, warehouses, oil fields, oil depots, long-distance pipelines, large factories, mining areas, freight yards, border and sea lines of defense, maritime and fishery administration, ecological protection areas, reservoirs, military bases and other outdoor and harsh environment places.

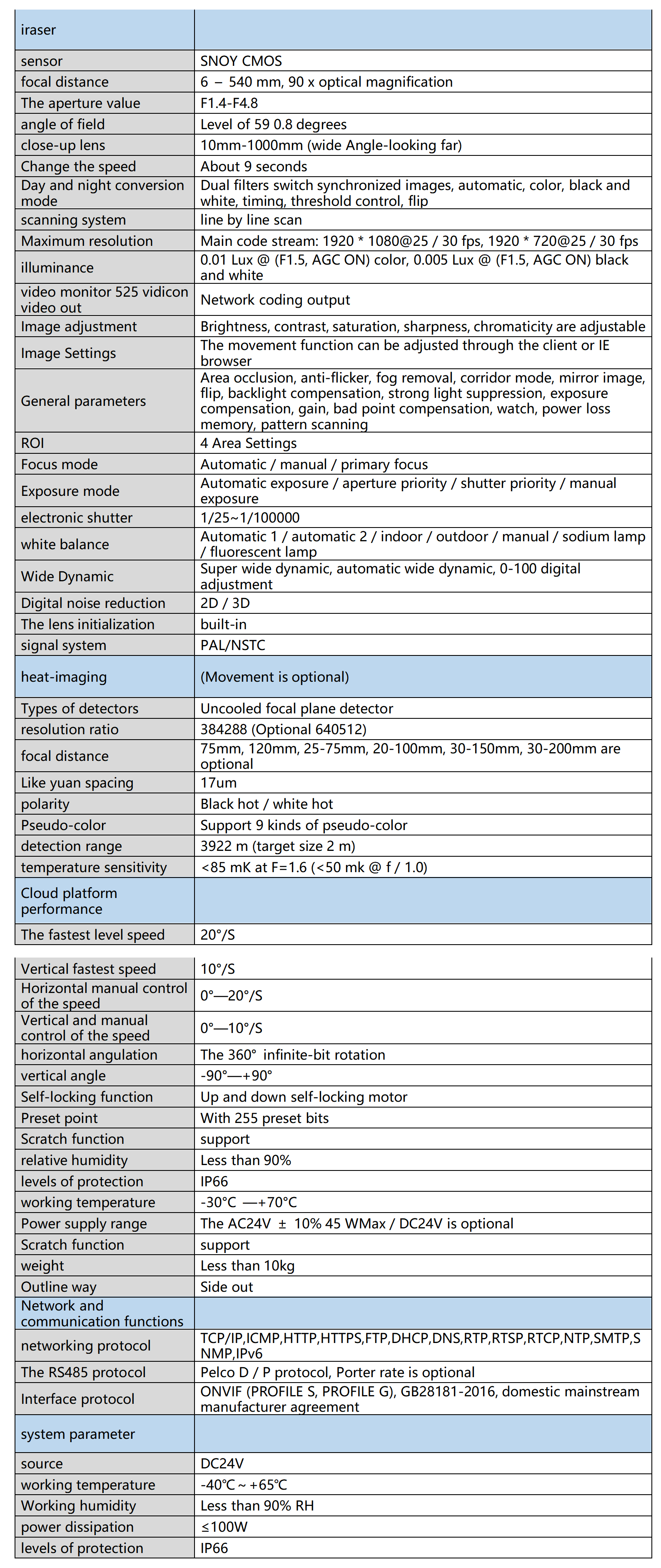

Product technical parameters:

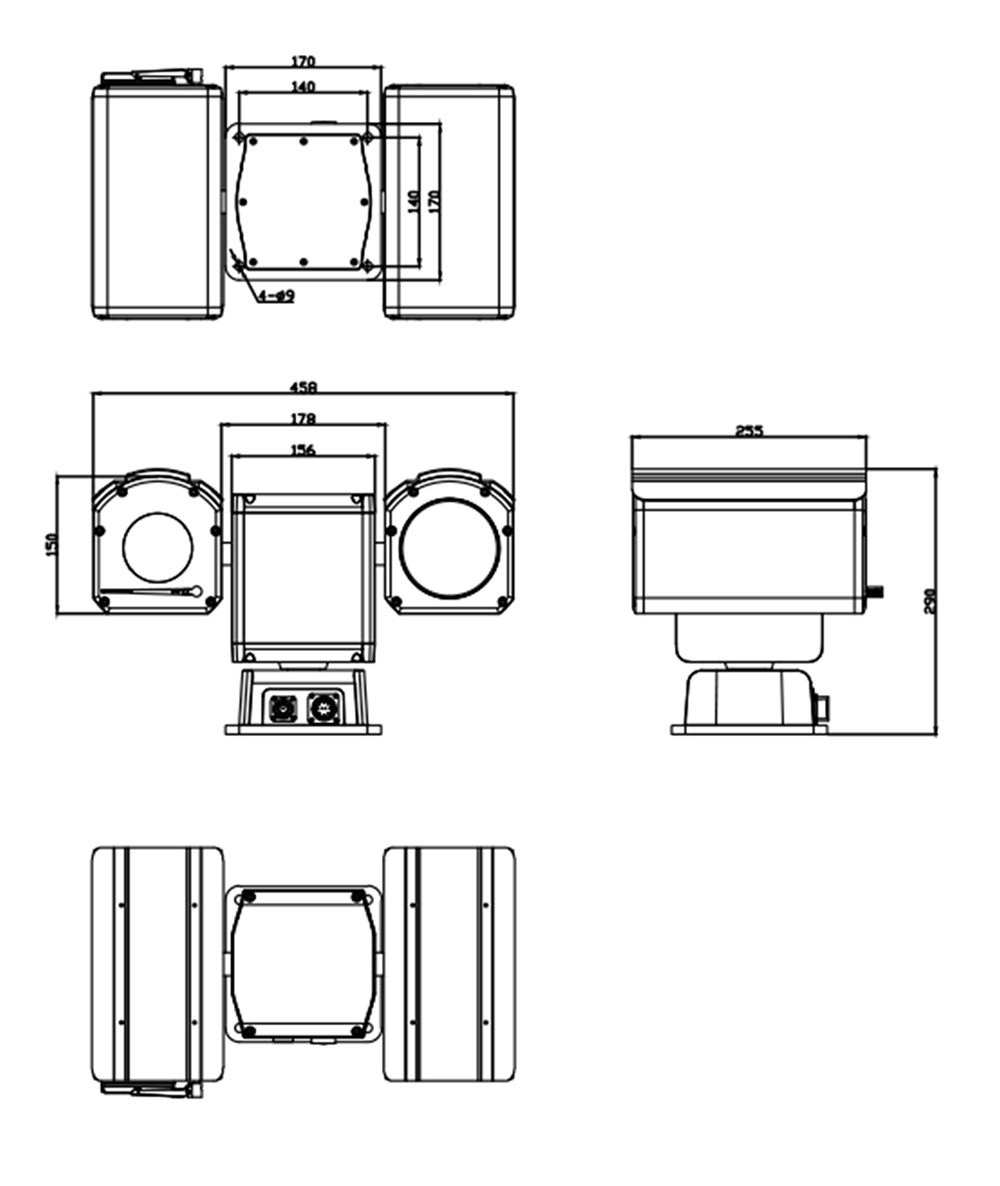

Product size drawing (unit MM) :
